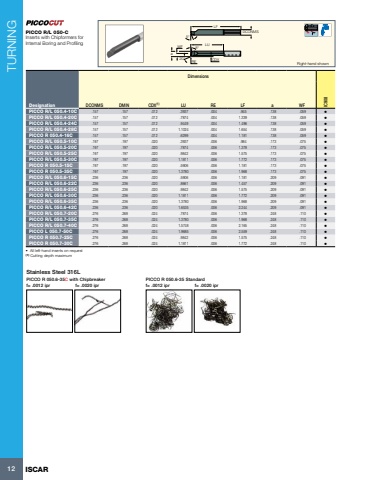

TURNING12 ISCARLF5%u00b08%u00b0RE 20%u00b0 CDXaWFDCONMSLURight-hand shownDimensionsDesignation DCONMS DMIN CDX(1) LU RE LF a WF IC908PICCO R/L 050.4-10C .157 .157 .012 .3937 .004 .945 .138 .059 %u2022 PICCO R/L 050.4-20C .157 .157 .012 .7874 .004 1.339 .138 .059 %u2022 PICCO R/L 050.4-24C .157 .157 .012 .9449 .004 1.496 .138 .059 %u2022 PICCO R/L 050.4-28C .157 .157 .012 1.1024 .004 1.654 .138 .059 %u2022 PICCO R 050.4-16C .157 .157 .012 .6299 .004 1.181 .138 .059 %u2022 PICCO R/L 050.5-10C .197 .197 .020 .3937 .006 .984 .173 .075 %u2022 PICCO R/L 050.5-20C .197 .197 .020 .7874 .006 1.378 .173 .075 %u2022 PICCO R/L 050.5-25C .197 .197 .020 .9842 .006 1.575 .173 .075 %u2022 PICCO R/L 050.5-30C .197 .197 .020 1.1811 .006 1.772 .173 .075 %u2022 PICCO R 050.5-15C .197 .197 .020 .5906 .006 1.181 .173 .075 %u2022 PICCO R 050.5-35C .197 .197 .020 1.3780 .006 1.968 .173 .075 %u2022 PICCO R/L 050.6-15C .236 .236 .020 .5906 .006 1.181 .209 .091 %u2022 PICCO R/L 050.6-22C .236 .236 .020 .8661 .006 1.457 .209 .091 %u2022 PICCO R/L 050.6-25C .236 .236 .020 .9842 .006 1.575 .209 .091 %u2022 PICCO R/L 050.6-30C .236 .236 .020 1.1811 .006 1.772 .209 .091 %u2022 PICCO R/L 050.6-35C .236 .236 .020 1.3780 .006 1.968 .209 .091 %u2022 PICCO R/L 050.6-42C .236 .236 .020 1.6535 .006 2.244 .209 .091 %u2022 PICCO R/L 050.7-20C .276 .268 .024 .7874 .006 1.378 .248 .110 %u2022 PICCO R/L 050.7-35C .276 .268 .024 1.3780 .006 1.968 .248 .110 %u2022 PICCO R/L 050.7-40C .276 .268 .024 1.5748 .006 2.165 .248 .110 %u2022 PICCO L 050.7-50C .276 .268 .024 1.9685 .006 2.559 .248 .110 %u2022 PICCO R 050.7-25C .276 .268 .024 .9842 .006 1.575 .248 .110 %u2022 PICCO R 050.7-30C .276 .268 .024 1.1811 .006 1.772 .248 .110 %u2022 %u2022 All left-hand inserts on request(1) Cutting depth maximum PICCO R 050.6-35C with Chipbreaker PICCO R 050.6-35 StandardStainless Steel 316Lf= .0012 ipr f= .0020 ipr f= .0012 ipr f= .0020 iprPICCO R/L 050-CInserts with Chipformers for Internal Boring and Profiling
