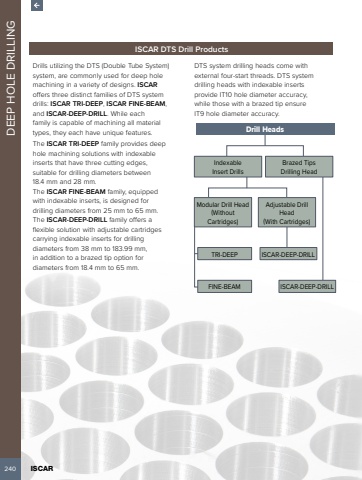

240 ISCAR DEEP HOLE DRILLINGISCAR DTS Drill ProductsDrills utilizing the DTS (Double Tube System) system, are commonly used for deep hole machining in a variety of designs. ISCARoffers three distinct families of DTS system drills: ISCAR TRI-DEEP, ISCAR FINE-BEAM, and ISCAR-DEEP-DRILL. While each family is capable of machining all material types, they each have unique features.The ISCAR TRI-DEEP family provides deep hole machining solutions with indexable inserts that have three cutting edges, suitable for drilling diameters between 18.4 mm and 28 mm. The ISCAR FINE-BEAM family, equipped with indexable inserts, is designed for drilling diameters from 25 mm to 65 mm. The ISCAR-DEEP-DRILL family offers a flexible solution with adjustable cartridges carrying indexable inserts for drilling diameters from 38 mm to 183.99 mm, in addition to a brazed tip option for diameters from 18.4 mm to 65 mm.DTS system drilling heads come with external four-start threads. DTS system drilling heads with indexable inserts provide IT10 hole diameter accuracy, while those with a brazed tip ensure IT9 hole diameter accuracy.Drill HeadsModular Drill Head (WithoutCartridges)Adjustable Drill Head(With Cartridges)TRI-DEEP ISCAR-DEEP-DRILLIndexable Insert DrillsBrazed TipsDrilling HeadFINE-BEAM ISCAR-DEEP-DRILL
